How to measure for railings in Bulgaria 2026
Measurement errors cost Bulgarian contractors up to 30% in project delays and material waste. Getting stainless steel railing dimensions right the first time protects your timeline, budget, and reputation. This guide walks you through proven measurement techniques, compliance requirements, and troubleshooting tips that ensure precision from site assessment to final installation.
Table of Contents
- Introduction To Stainless Steel Railing Measurement
- Prerequisites And Tools For Accurate Measurement
- Step-By-Step Measurement Instructions
- Compliance With Bulgarian And European Standards
- Common Mistakes And Troubleshooting Tips
- Expected Results And Success Metrics
- Enhance Your Railing Projects With Inoxify Solutions
- Frequently Asked Questions
Key takeaways
| Point | Details |
|---|---|
| Precision reduces rework | Accurate measurements cut rework by 25%, saving time and materials on every project. |
| Tools matter | Laser measurers achieve ±1 mm accuracy, while tape measures average 3-5 mm error margins. |
| Compliance is mandatory | Bulgarian standards require handrail heights between 900-1100 mm and alignment within 1 degree. |
| Common errors are preventable | Poor leveling, angle misjudgments, and skipped pilot holes cause most installation failures. |
| Material choice affects measurement | Grade 316 stainless steel requires different environmental considerations than grade 304 for outdoor applications. |
Introduction to stainless steel railing measurement
Precise measurement forms the foundation of safe, compliant stainless steel railing installation. Contractors who skip detailed measurement protocols face costly rework, safety violations, and client disputes. Understanding your railing type and material properties before measuring saves hours of corrective work.
Bulgarian construction projects typically involve three main railing categories:
- Wall-mounted railings for balconies and terraces
- Glass parapet systems for modern architectural applications
- Stair railings for interior and exterior staircases
Each type demands specific measurement approaches. Wall-mounted systems require precise horizontal spacing calculations. Glass parapets need exact vertical measurements to accommodate glass panel dimensions. Stair railings involve complex angle measurements that account for pitch and rise.
Material selection directly impacts your measurement strategy. Stainless steel grades AISI 304 and 316 differ significantly in corrosion resistance properties. Grade 304 works well for indoor applications where environmental exposure is minimal. Grade 316 contains molybdenum, providing superior resistance to chlorides and marine environments. Outdoor railings near coastal areas or roads treated with de-icing salts require grade 316 to prevent premature corrosion.
Environmental factors influence thermal expansion rates. Stainless steel expands approximately 17 micrometers per meter per degree Celsius. Long railing runs in areas with extreme temperature variations need expansion allowances built into measurements. Bulgarian contractors must account for temperature ranges from minus 20°C in winter to plus 40°C in summer sun exposure.
Compliance requirements shape every measurement decision. Bulgarian standards align with European Eurocodes for structural safety and dimensional tolerances. The Bulgarian Institute for Standardization (BDS) maintains specifications that mirror EN standards for railings, requiring contractors to understand both national and European requirements. Projects that fail compliance checks face expensive redesign and reinstallation costs.
Selecting appropriate stainless steel exterior railings for Bulgarian climates requires understanding how measurement precision interacts with material performance over decades of service life.
Prerequisites and tools for accurate measurement
Successful measurement starts before you pick up a tape measure. Site conditions, tool quality, and material knowledge determine whether your measurements translate to successful installations. Skipping preparation steps creates cascading errors that compound throughout the project.
Essential measurement tools include:
- Tape measure (5m minimum, steel construction type)
- Bubble level or digital level
- Laser distance measurer (optional but recommended)
- Angle finder for stairs and corners
- Chalk line for marking long runs
- Drill with appropriate bits for pilot holes
- Notepad or digital device for recording measurements
Laser measurers justify their cost on projects with multiple measurement points. They deliver accuracy within 1 mm across distances up to 50 meters. Traditional tape measures introduce human error through sagging, misalignment, and reading parallax. Digital levels eliminate guesswork in determining true vertical and horizontal planes.
Pro Tip: Calibrate your laser measurer against a known distance before starting each project. Measure a pre-verified 10-meter span to confirm accuracy. Temperature extremes can affect electronic tool performance.
Material knowledge prevents specification errors. Grade 316 stainless steel performs better outdoors than grade 304 due to enhanced corrosion resistance. This difference affects mounting hardware selection and spacing calculations. Grade 316 components cost 20-30% more but eliminate premature replacement expenses in harsh environments.
| Site Assessment Checklist | Purpose |
|---|---|
| Surface condition | Identifies mounting challenges and required hardware |
| Structural integrity | Confirms adequate support for load requirements |
| Environmental exposure | Determines appropriate material grade selection |
| Access constraints | Plans measurement approach and installation logistics |
| Existing infrastructure | Accounts for obstacles and integration points |
Surface preparation impacts measurement accuracy. Uneven concrete or damaged mounting surfaces require correction before final measurements. A surface with 10 mm variation across a 3-meter span creates alignment problems that no amount of careful measurement can resolve. Address structural issues first, then measure.
Compliance readiness means understanding local safety standards before measuring. Bulgarian regulations require specific handrail heights, load capacities, and spacing between vertical elements. Reviewing these requirements prevents measuring for a design that cannot pass inspection. Your stainless steel railing checklist should include verification points for every regulatory requirement.
Tool calibration is non-negotiable. Drop a level once and its accuracy disappears. Test levels against a known vertical surface before each use. Replace worn tape measures that no longer retract smoothly or show visible wear on measurement markings. Inaccurate tools make precise measurement impossible regardless of technique.
Weather conditions affect measurement activities. Wind moves tape measures. Rain obscures chalk lines. Direct sunlight makes digital displays hard to read. Schedule measurement work during calm, dry conditions with good lighting. Early morning or late afternoon provides optimal visibility without harsh shadows that hide surface irregularities.
Understanding how to install stainless railings informs what measurements you need and how to record them effectively for the installation phase.
Step-by-step measurement instructions
Systematic measurement prevents errors and missed dimensions. Following a consistent sequence ensures you capture every critical measurement before leaving the site. Returning for additional measurements wastes time and delays projects.
1. Conduct comprehensive site assessment
Walk the entire railing path. Photograph mounting surfaces, obstacles, and transition points. Note surface materials, existing attachments, and structural elements. Identify potential challenges before measuring. This reconnaissance prevents surprises during installation.
2. Verify tool calibration
Test your tape measure against a laser measurer if available. Check level accuracy on a known vertical surface. Confirm angle finder reads 90 degrees on a square corner. Five minutes of verification saves hours of rework.
3. Establish reference points and datums
Mark a primary reference point that will remain visible throughout measurement and installation. Use a permanent marker or chalk to identify this zero point. All measurements should relate back to this datum. For multi-level projects, establish vertical datums on each floor using a plumb bob or laser level.

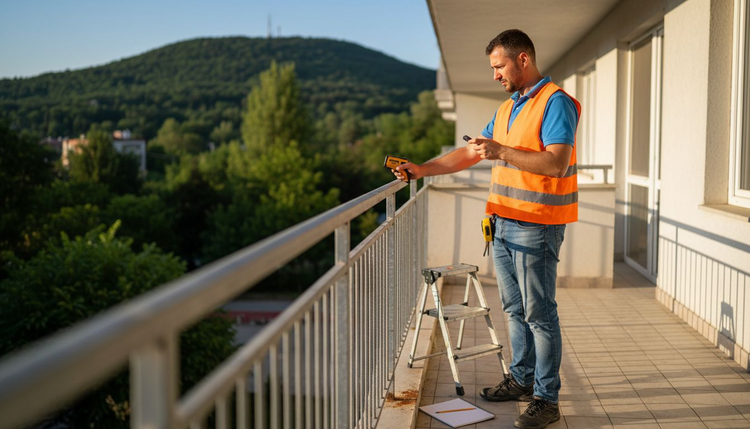

4. Measure total railing length
Stretch your tape measure along the entire railing path. Keep the tape level and properly tensioned. For runs longer than your tape, use chalk lines to mark intermediate points, then measure sections and sum them. Record measurements to the nearest millimeter.
Pro Tip: Measure long runs three times and average the results. A 5 mm discrepancy across 6 meters becomes a visible gap at installation.
5. Mark post locations precisely
Post spacing typically ranges from 1000 mm to 1500 mm depending on design loads and glass panel dimensions. Measure from your datum point, not from post to post. Cumulative error occurs when measuring sequentially. Mark each post location with a visible reference mark.
6. Measure vertical heights
Measure from the finished floor surface to the planned handrail centerline at multiple points. Bulgarian standards require heights between 900-1100 mm for safety compliance. Floor irregularities mean this measurement varies along the run. Record the highest and lowest points to ensure your railing maintains minimum height throughout.
7. Calculate and measure stair angles
Stair railings require precise pitch measurements. Use an angle finder to determine the exact staircase angle. Measure the rise and run of several steps to confirm consistency. Calculate the pitch angle using trigonometry or a digital angle finder. Record this angle precisely, as it determines handrail cutting angles and post orientations.
| Stair Measurement | Method | Tolerance |
|---|---|---|
| Pitch angle | Digital angle finder on nosing | ±0.5 degrees |
| Nosing to nosing | Tape measure along pitch line | ±3 mm |
| Post mounting height | Level from tread surface | ±2 mm |
| Handrail to nosing clearance | Perpendicular measurement | 900-1100 mm |
8. Measure corner and transition angles
Corners rarely form perfect 90-degree angles in existing construction. Measure actual angles using an angle finder. For outside corners, measure from both approaching directions to confirm the angle. Record whether corners are inside or outside, as this affects component selection.
9. Document mounting surface conditions
Measure mounting surface width and note material type. Concrete, brick, and wood require different fastener types and drilling approaches. Measure the distance from the edge of mounting surfaces to post locations. Inadequate edge distance causes concrete spalling during installation.
10. Record all measurements with clear labels
Create a sketch showing all dimensions, angles, and reference points. Label each measurement clearly. Include date, project address, and your initials. Photograph your documentation as backup. Ambiguous records lead to ordering errors and installation delays.
11. Cross-check critical measurements
Verify key dimensions before leaving the site. Re-measure total length, post spacing, and angles. Compare measurements taken from different reference points. Discrepancies indicate measurement errors that need resolution before ordering materials.
Following these steps systematically reduces common measurement mistakes that cause installation failures. Your renovation process for railings depends on measurement accuracy from the start.
Compliance with Bulgarian and European standards
Regulatory compliance is not optional. Bulgarian building inspectors reject installations that fail to meet BDS and Eurocode requirements. Understanding these standards before measuring ensures your project passes inspection on the first attempt.
The Bulgarian Institute for Standardization aligns national standards with European norms for construction safety. EN 1991 addresses actions on structures, including loads railings must withstand. EN 1993 covers steel structure design, applicable to stainless steel railings. These Eurocodes establish minimum safety thresholds that Bulgarian projects must meet.
Key dimensional requirements include:
- Handrail height: 900 mm to 1100 mm from finished floor
- Maximum gap between vertical infill: 100 mm for residential areas accessible to children
- Minimum handrail diameter: 40 mm for adequate grip
- Handrail clearance from wall: 50 mm minimum for hand passage
- Post spacing: Maximum determined by load calculations, typically 1500 mm
Load requirements dictate measurement precision needs. Handrails must withstand a horizontal point load of 1.0 kN applied at the most unfavorable position. This translates to approximately 100 kg of force. Post spacing and mounting integrity directly affect load distribution. Wider post spacing increases individual post loads, requiring more robust mounting or reduced spacing.
Deflection limits prevent excessive movement under load. Railings should not deflect more than 1/50th of the span length under maximum load. A 1500 mm span between posts allows maximum 30 mm deflection. This requirement influences material selection and measurement of mounting points. Inadequate mounting depth or spacing creates compliance failures.
Safety standards address specific hazards. The 100 mm maximum gap between vertical elements prevents child entrapment. Measuring this spacing accurately during installation verification ensures compliance. Inspectors check multiple points along the railing, not just one location. Consistent spacing throughout the installation is mandatory.
Glass parapet systems face additional requirements. Glass thickness, type, and mounting method fall under EN 12600 for impact resistance classification. Measurements must account for glass panel tolerances and mounting channel dimensions. A 2 mm measurement error in channel spacing can prevent glass panels from fitting correctly.
The role of railings in building codes extends beyond dimensional compliance to encompass structural integrity, material specifications, and installation methodology. Your measurements must support compliant installations across all these dimensions.
Documentation requirements create accountability. Maintain records of measurements, calculations, and compliance verification steps. Building inspectors may request evidence that your installation meets code requirements. Measurement documentation demonstrates due diligence and professional practice.
Staying current with standard updates is essential. BDS periodically revises standards to align with updated Eurocodes. Subscribe to BDS notifications or maintain membership in professional organizations that track regulatory changes. Installing railings to outdated standards creates liability even if they met requirements when installed.
Common mistakes and troubleshooting tips
Even experienced contractors make measurement errors. Recognizing common mistakes helps you avoid them and troubleshoot problems when they occur. Most measurement failures stem from rushed work, inadequate tools, or skipped verification steps.
Leveling and alignment failures
Poor leveling causes the most visible problems. Posts that are not plumb create railings that appear crooked regardless of other measurement accuracy. A 5 mm deviation from plumb at the base becomes a 20 mm offset at handrail height on a 1-meter post. Use digital levels that provide numeric readouts rather than relying on bubble interpretation.
Sloped surfaces complicate leveling. Measuring from a sloped floor to establish handrail height produces variable results. Establish a level datum line first, then measure vertically from that line to handrail positions. This technique ensures consistent height across irregular surfaces.
Mounting and pilot hole errors
Skipping pilot holes ranks among the most damaging mistakes. Drilling into concrete or masonry without pilot holes causes material cracking and reduces holding power. Measure and mark pilot hole locations precisely. A 5 mm pilot hole offset might miss the mounting bracket entirely, requiring new holes and patch work.
Edge distance matters critically. Mounting fasteners too close to concrete edges causes spalling. Measure at least 100 mm from edges for anchors in concrete. Closer mounting requires specialized edge anchors and reduced load ratings.
Angle and corner miscalculations
Assuming 90-degree corners without measuring creates gaps. Real-world construction rarely produces perfect right angles. A 3-degree corner variation causes a 13 mm gap over a 250 mm connection. Measure actual angles and order components accordingly.
Stair pitch inconsistency causes multiple problems. Railings cut to an assumed angle will not follow stairs with varying pitch. Measure pitch at multiple points along the staircase. If variation exceeds 2 degrees, adjust your approach or address the stair construction issues first.
Pro Tip: For problematic angles, create a cardboard template at full scale. This physical verification catches angle errors before cutting expensive stainless steel components.
Measurement recording and communication failures
Illegible notes cause ordering errors. Write clearly or use digital tools to record measurements. Include units (mm or cm) consistently. Mixing units creates costly mistakes. A 1000 mm measurement recorded as “1” and interpreted as 1 cm produces unusable components.
Ambiguous sketches lead to installation confusion. Draw clear plans showing which measurements apply to which locations. Label reference points and dimensions explicitly. Your installation crew should understand your drawings without calling for clarification.
Measurement errors contribute to approximately 30% of railing installation delays and material reorders. Triple-checking critical dimensions costs minutes but saves days of corrective work.
Tool-related measurement errors
Uncalibrated or damaged tools produce systematic errors. A bent tape measure consistently under-reports distances. A level with a damaged vial gives false readings. Inspect tools before each project and replace questionable equipment immediately.
Environmental factors affect tool accuracy. Metal tape measures expand in heat and contract in cold. Temperature variations of 20°C can change a 10-meter tape measure by 2 mm. For critical measurements in extreme conditions, apply temperature corrections or use laser measurers less affected by temperature.
Verification and quality control gaps
Skipping remeasurement of critical dimensions causes most preventable errors. Measure total length three times using different starting points. Verify post spacing by measuring both from a datum and between adjacent posts. Discrepancies indicate errors needing immediate resolution.
Your outdoor railing installation workflow should include multiple verification checkpoints where measurements are confirmed before proceeding to the next phase.
Expected results and success metrics
Successful measurement produces specific, measurable outcomes. Defining success criteria before starting helps you verify quality and identify problems early. Professional contractors use consistent metrics to evaluate their measurement accuracy.

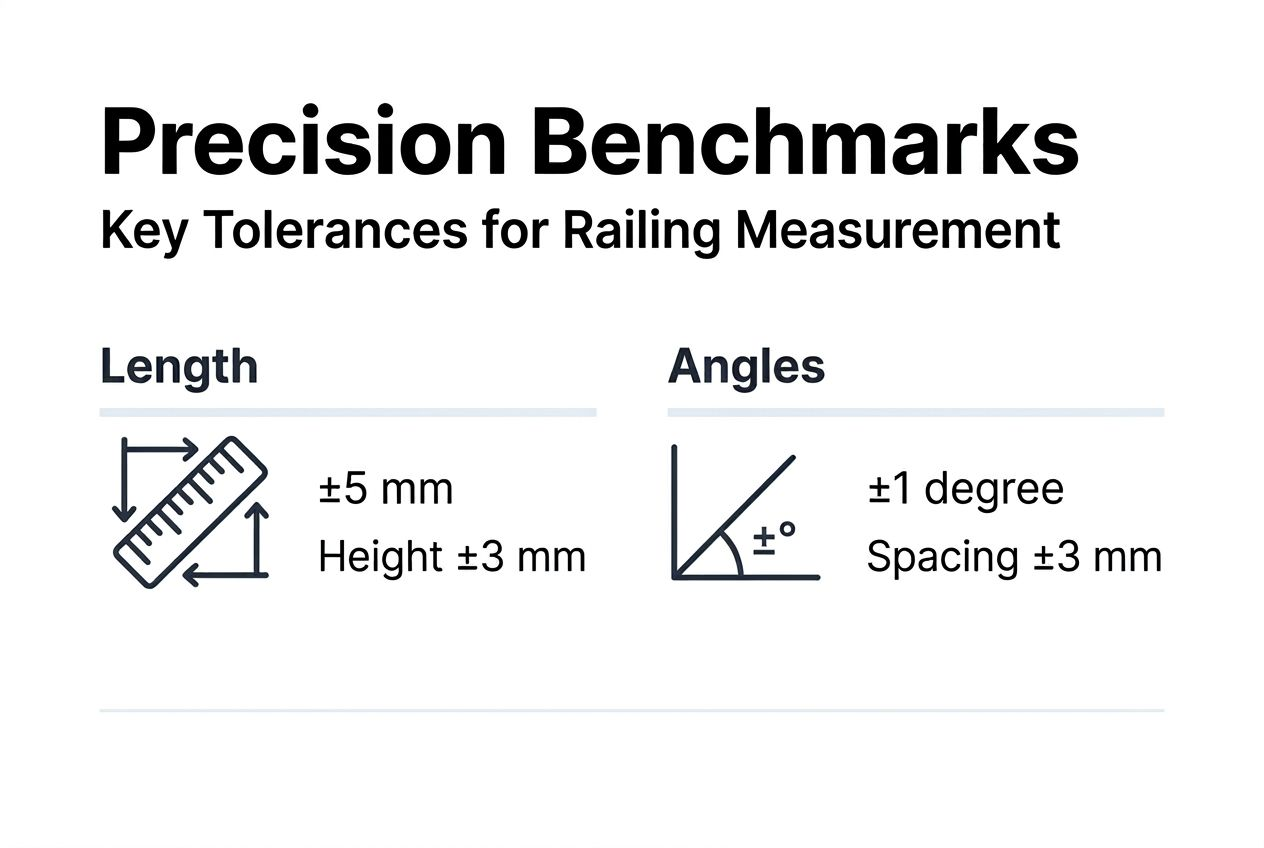

Dimensional accuracy benchmarks
Target precision of ±5 mm for length measurements ensures proper component fit. Closer tolerances create installation difficulties as materials expand with temperature. Looser tolerances produce visible gaps. This 5 mm standard balances practical manufacturing tolerances with aesthetic requirements.
Height measurements require ±3 mm accuracy to maintain compliance across the installation. A 10-meter railing run with 3 mm variation stays within the 900-1100 mm handrail height requirement even with floor irregularities.
Angular measurements need ±1 degree precision. This tolerance accommodates minor site variations while ensuring components mate properly. Stair railings with 1-degree accuracy follow the staircase smoothly without visible misalignment.
Compliance verification outcomes
Every measurement should support regulatory compliance. Verify that handrail heights fall between 900 mm and 1100 mm at all points. Confirm post spacing does not exceed load calculation limits. Check that vertical infill gaps remain below 100 mm throughout.
Post plumbness within 1 degree of true vertical is mandatory. A 1-meter tall post with 1-degree deviation moves only 17 mm at the top, remaining within acceptable alignment standards. Greater deviation becomes visually obvious and may fail inspection.
Efficiency and cost impact metrics
Accurate measurement reduces rework and return visits by 20-25%. This translates directly to labor cost savings and improved project margins. A project requiring one measurement visit and zero correction visits costs significantly less than one needing multiple measurement iterations.
Material waste decreases when measurements are precise. Ordering correctly sized components eliminates scrap from cutting errors. A 3-meter railing section cut 50 mm too short becomes waste. Precise measurement prevents these losses.
Client satisfaction improves when installations match specifications exactly. Projects completed without visible errors, alignment issues, or compliance failures build your reputation and generate referrals.
Measurement quality indicators include:
- Zero component reorders due to sizing errors
- Installation completion in planned timeframe
- First-attempt inspection approval
- No visible gaps or alignment issues
- Client acceptance without requested corrections
Your outdoor railing installation workflow achieves optimal efficiency when measurements feed directly into installation without intermediate corrections.
Documenting your measurement results creates a quality record. Photograph the site with measurements marked. Save calculation worksheets showing how you derived component sizes. This documentation protects against disputes and provides reference for future work.
Understanding how to choose stainless steel railings becomes more effective when you know precisely what dimensions your site requires.
Precision measurement is not an end in itself but a means to successful installation. When your measurements translate to components that fit perfectly, meet all code requirements, and create visually pleasing results, you have achieved measurement success. Learning how to order custom railings online becomes straightforward when you have confidence in your measurement accuracy.
Enhance your railing projects with Inoxify solutions
Accurate measurements deserve precision-engineered components that match your specifications exactly. Inoxify provides contractors throughout Bulgaria with stainless steel railing systems designed for straightforward installation and long-term performance.
Our закръглени системи and стълбищни системи use grade 316 stainless steel for superior corrosion resistance in outdoor applications. Custom sizing accommodates your exact measurements without forcing you into standard lengths that require field modifications. This precision reduces installation time and eliminates cutting waste.
Expert guidance helps translate your measurements into compliant installations. Our team understands Bulgarian building requirements and can verify that your specifications meet BDS and Eurocode standards. This support reduces inspection delays and ensures first-time approval.
Ready-to-install components streamline your workflow. Mounting brackets, posts, and handrail sections arrive pre-finished and properly sized. This eliminates on-site fabrication steps that introduce measurement errors and quality variations. Visit Inoxify to explore solutions that match your measurement precision with manufacturing quality.
Frequently asked questions
What is the recommended handrail height for Bulgarian stair railings?
Bulgarian standards require handrail heights between 900-1100 mm measured from the stair nosing to the handrail centerline. This range ensures safety while accommodating different user heights. Always measure at multiple points along the staircase as floor variations can affect compliance. Understanding Bulgarian building codes for railings helps ensure your measurements support compliant installations.
Which tools provide the best accuracy for railing measurements?
Laser distance measurers deliver accuracy within ±1 mm across spans up to 50 meters, making them ideal for professional work. Digital levels provide precise vertical alignment verification with numeric readouts. Traditional tape measures work adequately for shorter runs but introduce 3-5 mm potential error through sagging and reading parallax. Your railing checklist essential tools should prioritize quality over economy for measurement equipment.
How often should tools be calibrated to ensure precise measurements?
Calibrate measurement tools before each major project or monthly if you work on multiple sites. Check laser measurers against a known distance. Verify levels against a confirmed vertical surface. Replace tape measures showing wear on measurement markings or retraction mechanisms. Dropped or damaged tools require immediate testing before further use. Five minutes of calibration verification prevents hours of corrective work from inaccurate measurements.
What are the main differences between stainless steel grades 304 and 316?
Grade 304 suits indoor applications with minimal environmental exposure and costs 20-30% less than grade 316. Grade 316 offers superior corrosion resistance due to molybdenum content, making it essential for outdoor railings, coastal environments, or areas exposed to de-icing salts. This material difference affects mounting hardware selection and expected service life. Choose grade 316 for any installation facing weather exposure to prevent premature corrosion and maintenance issues.
How can contractors verify compliance with Bulgarian standards before installation?
Review BDS documentation and relevant Eurocodes during the planning phase. Create checklists that verify each regulatory requirement including handrail height, post spacing, and load capacity. Measure against these standards during site work rather than during inspection. Consult certified inspectors before finalizing designs if your project involves unusual configurations. Learning to verify compliance with building codes proactively prevents costly redesign after inspection failures.
